Creating one Argo CD Application is straightforward. You tell Argo CD where the Kubernetes manifests are stored, choose a destination cluster and namespace, and let the controller synchronize the application.

The difficulty appears when the platform grows.

Imagine that the same application must run in development, staging, and production. You might begin by copying the original Application manifest three times. Later, another cluster is added. Then a second application team arrives. Before long, the repository contains dozens of nearly identical files, and every small change must be repeated carefully across all of them.

Argo CD ApplicationSet solves this repetition problem. Instead of manually writing every Application, you define a generator and a reusable template. The generator discovers information such as registered clusters, Git directories, or environment configuration files. ApplicationSet then places those values into the template and creates the required Argo CD Applications automatically.

In this guide, we will build the entire setup from the beginning. We will create one Argo CD management cluster and two workload clusters on a local computer, register both clusters, deploy a small application with several ApplicationSet generators, combine Git and cluster data with the Matrix generator, and finish with a controlled development-to-production rollout.

The lab is intentionally local and cloud-free, so you can learn the workflow without paying for EKS, GKE, or AKS. The same ApplicationSet concepts apply when the destination clusters are real managed Kubernetes clusters.

This guide uses Argo CD v3.5.3, which was the latest stable release when the article was written. Pin and test the version approved by your organization instead of automatically installing a moving branch in production.

What Is Argo CD ApplicationSet?

An ApplicationSet is a Kubernetes custom resource managed by the ApplicationSet controller. Its job is to create and maintain Argo CD Application resources from a reusable template.

That distinction is important:

  • The ApplicationSet controller generates Argo CD Applications.
  • The Argo CD application controller reads those Applications and synchronizes Kubernetes resources.
  • Kubernetes runs the resulting Deployments, Services, and other workloads.

ApplicationSet does not replace Argo CD Applications. It automates their creation.

Think of a normal Application as one completed form. An ApplicationSet is the form template plus a list of values. For every set of values, the controller produces one completed form.

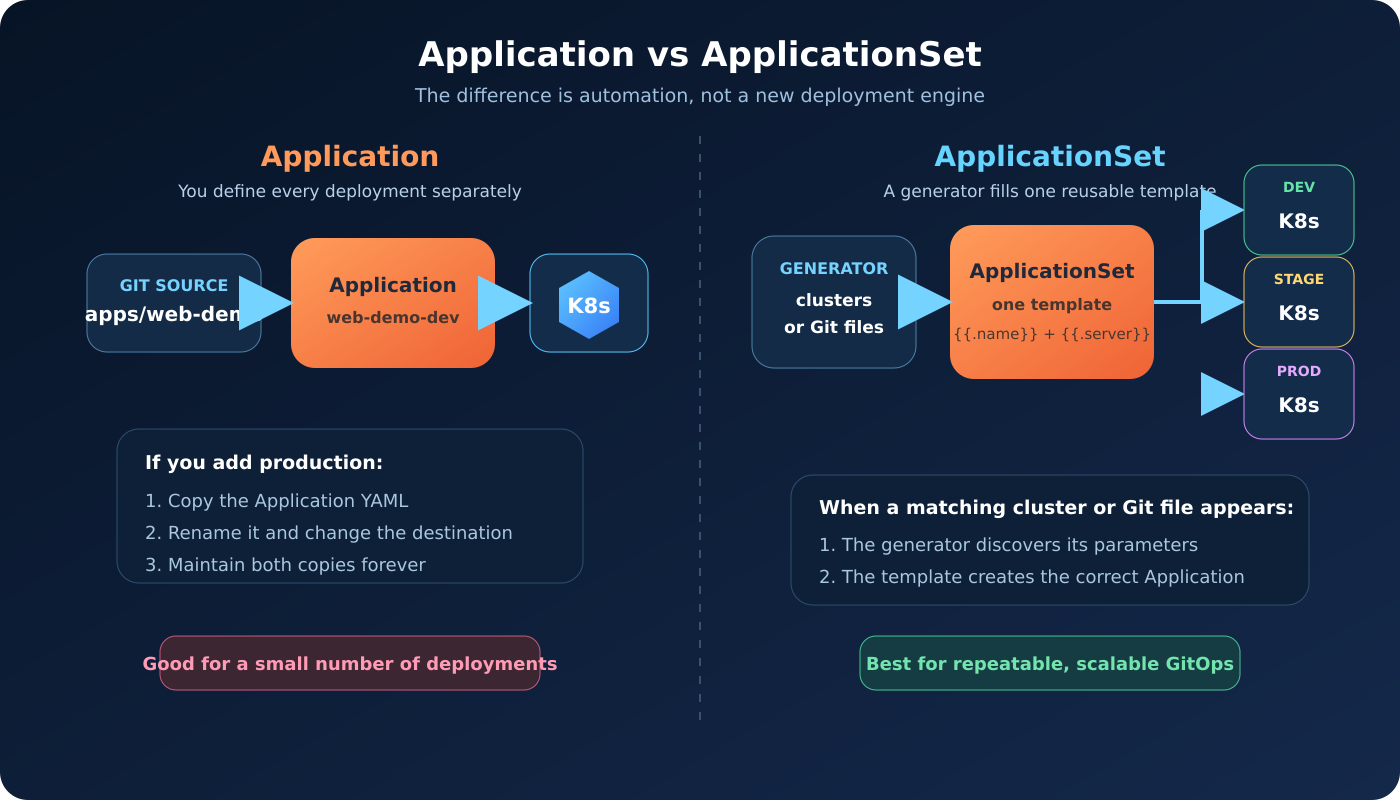

Application vs ApplicationSet

With a normal Application, one manifest normally represents one source-and-destination combination. If an application runs in three environments, you often maintain three Application manifests.

With an ApplicationSet, a generator can produce three parameter sets and insert each set into the same template. The result is still three Applications, but you maintain the generation rule instead of three repeated files.

Application vs ApplicationSet

Capability Application ApplicationSet
Main purpose Deploy one declared application Generate and manage multiple Applications
Repetition One manifest per deployment One template can create many deployments
Cluster discovery Destination is written directly Cluster generator can discover registered clusters
Git discovery Path is written directly Git generator can discover directories or files
Multi-cluster scaling Requires additional Application resources New matching clusters can generate Applications automatically
Best fit Small and unique deployments Repeated environments, clusters, tenants, or applications

ApplicationSet is not automatically better for every workload. A single unique application with one destination may be clearer as a normal Application. ApplicationSet becomes valuable when a repeatable pattern exists.

The ApplicationSet Mental Model

Every ApplicationSet is easier to understand when you separate it into three parts:

  1. Generator – produces one or more sets of parameters.
  2. Template – describes the Argo CD Application to create.
  3. Generated Applications – the final Application resources managed by the controller.

Here is a tiny example:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: hello-environments
  namespace: argocd
spec:
  goTemplate: true
  goTemplateOptions:
    - missingkey=error
  generators:
    - list:
        elements:
          - environment: development
          - environment: production
  template:
    metadata:
      name: 'hello-{{.environment}}'
    spec:
      project: default
      source:
        repoURL: https://github.com/example/platform-gitops.git
        targetRevision: main
        path: 'apps/hello/{{.environment}}'
      destination:
        server: https://kubernetes.default.svc
        namespace: 'hello-{{.environment}}'

The List generator produces these two parameter sets:

1
2
environment=development
environment=production

The template is rendered once for each set. The controller therefore creates:

1
2
hello-development
hello-production

The expressions inside {{` and `}} are Go template expressions. We enable missingkey=error so that a misspelled or missing parameter causes a visible error instead of quietly producing an incomplete Application.

Common ApplicationSet Generators

ApplicationSet supports several generators. You do not need to memorize all of them before starting.

Generator Where parameters come from Typical use case
List Values written directly in the ApplicationSet A small, fixed list of environments or clusters
Cluster Clusters registered with Argo CD Deploy an application to every cluster matching specific labels
Git directory Directory names in a Git repository Discover applications or environment folders
Git file Values inside YAML or JSON files Store environment configuration as data in Git
Matrix Combines two child generators Match Git configuration with registered clusters
Merge Merges generator output using matching keys Apply defaults and environment overrides
SCM Provider Repositories discovered from GitHub, GitLab, or another provider Generate Applications across many repositories
Pull Request Open pull requests Create temporary preview environments

We will use the first four concepts in this tutorial and finish with Matrix because it gives us a practical Git-driven, multi-cluster design.

Architecture Used in This Guide

We will create three single-node kind clusters:

  • argocd-hub runs Argo CD and the ApplicationSet controller.
  • development runs the development copy of our application.
  • production runs the production copy of our application.

The Git repository stores the application manifests and environment configuration. Argo CD reads Git from the management cluster and deploys the correct overlay to each workload cluster.

Multi-Cluster Architecture

The management cluster is the control plane for GitOps, but it is not the Kubernetes control plane of the other clusters. Each workload cluster remains independent. Argo CD connects to their Kubernetes API servers with credentials stored as Secrets in the argocd namespace.

In a production environment, the hub could be an EKS cluster and the workload destinations could be separate EKS, GKE, AKS, OpenShift, or on-premises clusters.

Repository Structure

We will build the following repository:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
argocd-applicationset-lab/
├── applicationsets/
│   ├── 01-list-generator.yaml
│   ├── 02-cluster-generator.yaml
│   ├── 03-git-generator.yaml
│   ├── 04-matrix-generator.yaml
│   └── 05-progressive-syncs.yaml
├── apps/
│   └── web-demo/
│       ├── base/
│       │   ├── deployment.yaml
│       │   ├── kustomization.yaml
│       │   └── service.yaml
│       └── overlays/
│           ├── development/
│           │   └── kustomization.yaml
│           └── production/
│               └── kustomization.yaml
├── environments/
│   ├── development/
│   │   └── config.yaml
│   └── production/
│       └── config.yaml
├── kind/
│   ├── development.yaml
│   └── production.yaml
└── projects/
    └── platform-project.yaml

The base contains resources shared by every environment. Each overlay changes only what is different. The environment files contain the data used by the Git and Matrix generators.

Prerequisites

Before starting, make sure you have:

  • Docker Engine or Docker Desktop running
  • kind installed
  • kubectl installed
  • Argo CD CLI installed
  • Git installed
  • A Git hosting account such as GitHub or GitLab
  • Approximately 6–8 GB of free memory for the three local clusters

The commands are written for Bash and work well in Linux, macOS, WSL, and Git Bash. PowerShell users can run the Kubernetes commands, but should translate the shell variable and multiline examples where necessary.

Verify the tools:

1
2
3
4
5
docker version
kind version
kubectl version --client
argocd version --client
git --version

Do not continue if Docker is not running or any command is missing.

Create the Three Kubernetes Clusters

The hub cluster does not require special configuration:

1
kind create cluster --name argocd-hub

For the two workload clusters, we add their internal Docker hostnames to the Kubernetes API certificate. This allows Argo CD, which runs inside another kind cluster, to connect securely through the shared Docker network.

Create kind/development.yaml:

1
2
3
4
5
6
7
8
9
10
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
  - role: control-plane
    kubeadmConfigPatches:
      - |
        kind: ClusterConfiguration
        apiServer:
          certSANs:
            - development-control-plane

Create kind/production.yaml:

1
2
3
4
5
6
7
8
9
10
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
  - role: control-plane
    kubeadmConfigPatches:
      - |
        kind: ClusterConfiguration
        apiServer:
          certSANs:
            - production-control-plane

Create the workload clusters:

1
2
3
4
5
6
7
kind create cluster \
  --name development \
  --config kind/development.yaml

kind create cluster \
  --name production \
  --config kind/production.yaml

List the clusters and kubeconfig contexts:

1
2
kind get clusters
kubectl config get-contexts

You should see:

1
2
3
argocd-hub
development
production

The corresponding context names are normally:

1
2
3
kind-argocd-hub
kind-development
kind-production

Verify every cluster separately:

1
2
3
kubectl --context kind-argocd-hub get nodes
kubectl --context kind-development get nodes
kubectl --context kind-production get nodes

Each command should show one control-plane node in the Ready state.

Install Argo CD in the Hub Cluster

Set the Argo CD version used by this guide:

1
export ARGOCD_VERSION="v3.5.3"

Create the namespace and install the pinned manifest:

1
2
3
4
5
6
7
8
9
kubectl --context kind-argocd-hub \
  create namespace argocd

kubectl --context kind-argocd-hub \
  apply \
  --namespace argocd \
  --server-side \
  --force-conflicts \
  --filename "https://raw.githubusercontent.com/argoproj/argo-cd/${ARGOCD_VERSION}/manifests/install.yaml"

The --server-side option is important because some Argo CD CRDs are too large for the annotation created by client-side apply. --force-conflicts is acceptable for this fresh lab installation. Do not use it casually against an existing installation managed by Helm or another owner.

Wait for the main components:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
kubectl --context kind-argocd-hub \
  --namespace argocd \
  rollout status deployment/argocd-server \
  --timeout=180s

kubectl --context kind-argocd-hub \
  --namespace argocd \
  rollout status deployment/argocd-repo-server \
  --timeout=180s

kubectl --context kind-argocd-hub \
  --namespace argocd \
  rollout status deployment/argocd-applicationset-controller \
  --timeout=180s

Confirm that the Pods are running:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  get pods

The standard Argo CD installation already contains the ApplicationSet controller. Do not install the old standalone ApplicationSet project on top of a current Argo CD installation.

Access Argo CD

Set the hub as the current context so the Argo CD administrative commands use the correct cluster:

1
kubectl config use-context kind-argocd-hub

Start a local port forward in one terminal and leave it running:

1
2
kubectl --namespace argocd \
  port-forward service/argocd-server 8080:443

In a second terminal, display the initial admin password:

1
argocd admin initial-password --namespace argocd

Log in. The command will ask for the password, which avoids storing it in shell history:

1
2
3
argocd login localhost:8080 \
  --username admin \
  --insecure

We use --insecure only because the local port forward reaches Argo CD’s default self-signed certificate. Production access should use a trusted TLS certificate without this flag.

Verify the client and server versions:

1
argocd version

Register the Workload Clusters

Argo CD must know how to authenticate to each destination cluster. Register the development cluster and attach an environment label:

1
2
3
4
argocd cluster add kind-development \
  --name development \
  --label environment=development \
  --yes

Register production:

1
2
3
4
argocd cluster add kind-production \
  --name production \
  --label environment=production \
  --yes

The command creates an argocd-manager ServiceAccount and RBAC resources in each workload cluster. It then stores the connection information as a Secret in the hub’s argocd namespace.

Fix the Local Kind API Endpoints

There is one local-lab detail to fix. The kubeconfig created by kind normally points to a host address such as https://127.0.0.1:54321. That address works from your laptop, but 127.0.0.1 inside the Argo CD Pod refers to the Pod itself.

We will replace the stored endpoints with the workload control-plane container names, which are reachable across kind‘s Docker network.

Find the development cluster Secret:

1
2
3
4
5
DEV_SECRET=$(kubectl --context kind-argocd-hub \
  --namespace argocd \
  get secrets \
  --selector 'argocd.argoproj.io/secret-type=cluster,environment=development' \
  --output jsonpath='{.items[0].metadata.name}')

Patch its server address:

1
2
3
4
5
kubectl --context kind-argocd-hub \
  --namespace argocd \
  patch secret "$DEV_SECRET" \
  --type merge \
  --patch '{"stringData":{"server":"https://development-control-plane:6443"}}'

Repeat the process for production:

1
2
3
4
5
6
7
8
9
10
11
PROD_SECRET=$(kubectl --context kind-argocd-hub \
  --namespace argocd \
  get secrets \
  --selector 'argocd.argoproj.io/secret-type=cluster,environment=production' \
  --output jsonpath='{.items[0].metadata.name}')

kubectl --context kind-argocd-hub \
  --namespace argocd \
  patch secret "$PROD_SECRET" \
  --type merge \
  --patch '{"stringData":{"server":"https://production-control-plane:6443"}}'

Wait a few seconds and inspect the registered clusters:

1
argocd cluster list

Both development and production should eventually report a successful connection.

The endpoint patch is specific to this multi-kind lab. Do not replace managed-cluster endpoints with Docker hostnames in EKS, GKE, AKS, or OpenShift.

A Production Security Warning

The default argocd cluster add flow creates powerful cluster-wide permissions. That is convenient for a lab but should not become an unreviewed production default. Limit Argo CD to approved namespaces where possible, create purpose-built RBAC, rotate credentials, and protect the cluster Secrets in the argocd namespace.

Create the Destination Namespaces

Our AppProject will not allow applications to create cluster-scoped Namespace resources. The platform administrator creates the namespaces first:

1
2
3
4
5
kubectl --context kind-development \
  create namespace web-development

kubectl --context kind-production \
  create namespace web-production

Verify them:

1
2
3
4
5
kubectl --context kind-development \
  get namespace web-development

kubectl --context kind-production \
  get namespace web-production

This separation reflects a common production model: the platform team provisions namespaces with quotas, network policies, Pod Security labels, and ownership metadata before application teams deploy workloads.

Create the Git Repository and Example Application

The repository URL used in this guide is a template. A repository named argocd-applicationset-lab will not exist in your account until you create it.

Create an Empty GitHub Repository

  1. Sign in to GitHub.
  2. Select New repository from the + menu.
  3. Enter argocd-applicationset-lab as the repository name.
  4. Select Public. This lets the lab Argo CD installation read the repository without extra credentials.
  5. Leave Add a README file, .gitignore, and licence unchecked. We want an empty repository.
  6. Select Create repository.

GitHub will now show the real URL of your new repository. Replace YOUR_GITHUB_USERNAME with your GitHub username. For example, if the username is dinushchathurya, the URL becomes:

1
https://github.com/dinushchathurya/argocd-applicationset-lab.git

Clone your newly created repository and enter its directory:

1
2
git clone https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
cd argocd-applicationset-lab

You may see this message:

1
warning: You appear to have cloned an empty repository.

That warning is expected. The repository is empty because we have not created or pushed the lab files yet.

If Git reports Repository not found, confirm that you created the repository first, used the correct username, and copied the exact clone URL from GitHub.

Replace every remaining YOUR_GITHUB_USERNAME value in this guide with your real account or organization.

Create these directories:

1
2
3
4
5
6
mkdir -p apps/web-demo/base
mkdir -p apps/web-demo/overlays/development
mkdir -p apps/web-demo/overlays/production
mkdir -p environments/development
mkdir -p environments/production
mkdir -p applicationsets projects kind

Create the Shared Deployment

Create apps/web-demo/base/deployment.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-demo
  labels:
    app.kubernetes.io/name: web-demo
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: web-demo
  template:
    metadata:
      labels:
        app.kubernetes.io/name: web-demo
    spec:
      containers:
        - name: web-demo
          image: hashicorp/http-echo:1.0
          args:
            - -text=Hello from Argo CD ApplicationSet
          ports:
            - name: http
              containerPort: 5678
          readinessProbe:
            httpGet:
              path: /
              port: http
            initialDelaySeconds: 2
            periodSeconds: 5
          livenessProbe:
            httpGet:
              path: /
              port: http
            initialDelaySeconds: 5
            periodSeconds: 10
          resources:
            requests:
              cpu: 25m
              memory: 32Mi
            limits:
              cpu: 100m
              memory: 64Mi

The small http-echo container returns a text response. This makes it easy to prove which environment is serving traffic.

Create apps/web-demo/base/service.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
apiVersion: v1
kind: Service
metadata:
  name: web-demo
  labels:
    app.kubernetes.io/name: web-demo
spec:
  selector:
    app.kubernetes.io/name: web-demo
  ports:
    - name: http
      port: 80
      targetPort: http

Create apps/web-demo/base/kustomization.yaml:

1
2
3
4
5
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - deployment.yaml
  - service.yaml

Create the Development Overlay

Create apps/web-demo/overlays/development/kustomization.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - ../../base
replicas:
  - name: web-demo
    count: 1
patches:
  - target:
      kind: Deployment
      name: web-demo
    patch: |-
      - op: replace
        path: /spec/template/spec/containers/0/args/0
        value: -text=Hello from the DEVELOPMENT cluster
commonLabels:
  app.kubernetes.io/environment: development

Development runs one replica and returns a development-specific message.

Create the Production Overlay

Create apps/web-demo/overlays/production/kustomization.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - ../../base
replicas:
  - name: web-demo
    count: 2
patches:
  - target:
      kind: Deployment
      name: web-demo
    patch: |-
      - op: replace
        path: /spec/template/spec/containers/0/args/0
        value: -text=Hello from the PRODUCTION cluster
commonLabels:
  app.kubernetes.io/environment: production

Production runs two replicas and returns a different message.

Render both overlays locally before committing them:

1
2
kubectl kustomize apps/web-demo/overlays/development
kubectl kustomize apps/web-demo/overlays/production

This catches YAML, path, and patch errors before Argo CD encounters them.

Add Environment Configuration Files

The Git file generator can read YAML or JSON and expose its fields as template parameters.

Create environments/development/config.yaml:

1
2
3
environment: development
clusterName: development
namespace: web-development

Create environments/production/config.yaml:

1
2
3
environment: production
clusterName: production
namespace: web-production

These files contain data, not Kubernetes objects. ApplicationSet will parse them and make .environment, .clusterName, and .namespace available to the template.

Commit and push the initial repository:

1
2
3
4
git add .
git commit -m "Add multi-cluster ApplicationSet lab"
git branch -M main
git push -u origin main

Open the repository in your browser and confirm that the apps, environments, applicationsets, projects, and kind directories are visible before continuing.

Create a Restricted AppProject

An ApplicationSet can generate Applications, but every generated Application must still obey its AppProject. We will restrict the source repository, cluster names, namespaces, and resource types.

Create projects/platform-project.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
  name: applicationset-lab
  namespace: argocd
spec:
  description: Restricted project for the ApplicationSet multi-cluster lab
  sourceRepos:
    - https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
  destinations:
    - name: development
      namespace: web-development
    - name: production
      namespace: web-production
  clusterResourceWhitelist: []
  namespaceResourceWhitelist:
    - group: ""
      kind: Service
    - group: apps
      kind: Deployment
  orphanedResources:
    warn: true

Replace the repository URL, commit the change, and apply the project to the hub:

1
2
kubectl --context kind-argocd-hub \
  apply --filename projects/platform-project.yaml

Inspect it:

1
argocd proj get applicationset-lab

The project permits only our repository, two cluster-and-namespace combinations, Service, and Deployment. It does not grant permission to deploy cluster-scoped resources.

If you want a deeper explanation of project boundaries and user permissions, read Argo CD Multi-Tenancy with AppProjects, RBAC, and SSO.

Start with the List Generator

The List generator is the easiest generator to understand because every parameter is written directly in the manifest.

Create applicationsets/01-list-generator.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: list-web-demo
  namespace: argocd
spec:
  goTemplate: true
  goTemplateOptions:
    - missingkey=error
  generators:
    - list:
        elements:
          - environment: development
            server: https://development-control-plane:6443
            namespace: web-development
          - environment: production
            server: https://production-control-plane:6443
            namespace: web-production
  template:
    metadata:
      name: 'list-web-demo-{{.environment}}'
      labels:
        environment: '{{.environment}}'
    spec:
      project: applicationset-lab
      source:
        repoURL: https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
        targetRevision: main
        path: 'apps/web-demo/overlays/{{.environment}}'
      destination:
        server: '{{.server}}'
        namespace: '{{.namespace}}'
      syncPolicy:
        automated:
          prune: true
          selfHeal: true

Replace the repository URL and apply the file:

1
2
kubectl --context kind-argocd-hub \
  apply --filename applicationsets/01-list-generator.yaml

Inspect the parent ApplicationSet:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  get applicationset list-web-demo

List the generated Applications:

1
2
3
4
kubectl --context kind-argocd-hub \
  --namespace argocd \
  get applications \
  --selector app.kubernetes.io/instance=list-web-demo

If your Argo CD version does not add that instance label, list by name instead:

1
argocd app list | grep list-web-demo

You should see:

1
2
list-web-demo-development
list-web-demo-production

Verify the workloads directly:

1
2
3
4
5
6
7
kubectl --context kind-development \
  --namespace web-development \
  get deployments,pods,services

kubectl --context kind-production \
  --namespace web-production \
  get deployments,pods,services

Development should have one Pod and production should have two.

Test the Responses

Start a temporary port forward to development:

1
2
3
kubectl --context kind-development \
  --namespace web-development \
  port-forward service/web-demo 8081:80

In another terminal:

1
curl http://localhost:8081

Expected response:

1
Hello from the DEVELOPMENT cluster

Stop the first port forward and test production:

1
2
3
kubectl --context kind-production \
  --namespace web-production \
  port-forward service/web-demo 8082:80
1
curl http://localhost:8082

Expected response:

1
Hello from the PRODUCTION cluster

The List generator works, but cluster addresses are still written manually. The Cluster generator removes that requirement.

Discover Clusters with the Cluster Generator

Delete the first example before applying the next one. This avoids multiple Applications trying to own the same resources:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  delete applicationset list-web-demo

Wait until its generated Applications disappear:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  get applications

Create applicationsets/02-cluster-generator.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: cluster-web-demo
  namespace: argocd
spec:
  goTemplate: true
  goTemplateOptions:
    - missingkey=error
  generators:
    - clusters:
        selector:
          matchExpressions:
            - key: environment
              operator: In
              values:
                - development
                - production
  template:
    metadata:
      name: 'cluster-web-demo-{{.nameNormalized}}'
      labels:
        environment: '{{index .metadata.labels "environment"}}'
    spec:
      project: applicationset-lab
      source:
        repoURL: https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
        targetRevision: main
        path: 'apps/web-demo/overlays/{{index .metadata.labels "environment"}}'
      destination:
        server: '{{.server}}'
        namespace: 'web-{{index .metadata.labels "environment"}}'
      syncPolicy:
        automated:
          prune: true
          selfHeal: true

The Cluster generator reads Argo CD’s registered cluster Secrets. For every Secret whose environment label is development or production, it exposes parameters such as:

  • .name
  • .nameNormalized
  • .server
  • .metadata.labels
  • .metadata.annotations

nameNormalized is useful for Kubernetes resource names because unsupported characters are converted into hyphens.

Apply and verify:

1
2
3
4
kubectl --context kind-argocd-hub \
  apply --filename applicationsets/02-cluster-generator.yaml

argocd app list | grep cluster-web-demo

You should receive one Application for each matching registered cluster.

This creates a powerful onboarding pattern: when the platform team registers a new cluster with the correct labels, the Cluster generator can automatically create its standard applications.

Read Environment Data with the Git Generator

The Cluster generator treats cluster registration as the source of truth. Sometimes you want Git to declare which environments should exist and how each one should be configured.

Delete the Cluster generator example:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  delete applicationset cluster-web-demo

Create applicationsets/03-git-generator.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: git-web-demo
  namespace: argocd
spec:
  goTemplate: true
  goTemplateOptions:
    - missingkey=error
  generators:
    - git:
        repoURL: https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
        revision: main
        files:
          - path: environments/*/config.yaml
  template:
    metadata:
      name: 'git-web-demo-{{.environment}}'
      labels:
        environment: '{{.environment}}'
    spec:
      project: applicationset-lab
      source:
        repoURL: https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
        targetRevision: main
        path: 'apps/web-demo/overlays/{{.environment}}'
      destination:
        name: '{{.clusterName}}'
        namespace: '{{.namespace}}'
      syncPolicy:
        automated:
          prune: true
          selfHeal: true

This generator finds both config.yaml files and parses their fields. Notice that the destination uses the registered cluster name rather than its server address.

Apply and verify:

1
2
3
4
kubectl --context kind-argocd-hub \
  apply --filename applicationsets/03-git-generator.yaml

argocd app list | grep git-web-demo

If a third environment file is added with a valid cluster name, this generator can create a third Application without changing the ApplicationSet manifest.

By default, the Git generator polls the repository periodically. A production installation can configure a webhook to reduce the delay between a Git push and ApplicationSet reconciliation.

Combine Git and Cluster Data with the Matrix Generator

The Git generator trusts the cluster name written in Git. The Cluster generator trusts the labels attached during cluster registration. A Matrix generator can combine both sources and require them to match.

Delete the Git-only example:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  delete applicationset git-web-demo

Here is the flow we want:

Generator and Template Flow

The Git generator runs first and produces an environment value. The Cluster generator runs second and uses that value in its label selector. Development configuration therefore matches only the development cluster, and production configuration matches only production.

Create applicationsets/04-matrix-generator.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: matrix-web-demo
  namespace: argocd
spec:
  goTemplate: true
  goTemplateOptions:
    - missingkey=error
  generators:
    - matrix:
        generators:
          - git:
              repoURL: https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
              revision: main
              files:
                - path: environments/*/config.yaml
          - clusters:
              selector:
                matchLabels:
                  argocd.argoproj.io/secret-type: cluster
                  environment: '{{.environment}}'
  template:
    metadata:
      name: 'matrix-web-demo-{{.environment}}'
      labels:
        environment: '{{.environment}}'
    spec:
      project: applicationset-lab
      source:
        repoURL: https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
        targetRevision: main
        path: 'apps/web-demo/overlays/{{.environment}}'
      destination:
        server: '{{.server}}'
        namespace: '{{.namespace}}'
      syncPolicy:
        automated:
          prune: true
          selfHeal: true

Apply it:

1
2
kubectl --context kind-argocd-hub \
  apply --filename applicationsets/04-matrix-generator.yaml

Inspect the parent and its generated Applications:

1
2
3
4
5
kubectl --context kind-argocd-hub \
  --namespace argocd \
  get applicationset matrix-web-demo

argocd app list | grep matrix-web-demo

Inspect one rendered Application:

1
2
3
4
kubectl --context kind-argocd-hub \
  --namespace argocd \
  get application matrix-web-demo-development \
  --output yaml

You should see the development overlay, internal development server address, and web-development namespace in the rendered specification.

Why Generator Order Matters

In this Matrix, the Git generator must come first because it produces .environment. The Cluster generator consumes that value in this selector:

1
environment: '{{.environment}}'

Reversing the child generators creates an invalid dependency because .environment would not exist when the cluster selector is evaluated.

The Matrix generator supports two child generators. It combines or passes their parameters into one final template. When two Git generators are combined, use pathParamPrefix to prevent their automatically generated path parameters from colliding.

Test a Real GitOps Change

Now prove that Git, ApplicationSet, Argo CD, and both clusters form one complete workflow.

Edit the production overlay and change the replica count from two to three:

1
2
3
replicas:
  - name: web-demo
    count: 3

Commit and push the change:

1
2
3
git add apps/web-demo/overlays/production/kustomization.yaml
git commit -m "Scale production web demo to three replicas"
git push origin main

Ask Argo CD to refresh immediately instead of waiting for its normal reconciliation interval:

1
argocd app get matrix-web-demo-production --refresh

Watch the production Deployment:

1
2
3
4
5
6
7
kubectl --context kind-production \
  --namespace web-production \
  rollout status deployment/web-demo

kubectl --context kind-production \
  --namespace web-production \
  get pods

Production should reach three running Pods. Development remains at one because its overlay did not change.

This is the key GitOps result: the environment-specific desired state changed in Git, Argo CD detected the difference, and only the intended cluster was updated.

Add Progressive Syncs

Standard automated synchronization can update all generated Applications as soon as their desired state changes. Some platforms need a controlled order—for example, update development first, wait until it is healthy, and then allow production.

ApplicationSet Progressive Syncs provide a RollingSync strategy for this purpose.

Progressive Syncs are a Beta feature in Argo CD 3.5. Test the exact version and behavior in a non-production environment before relying on it for critical releases.

Progressive Syncs

Enable the Feature

Enable Progressive Syncs in the Argo CD command parameters ConfigMap:

1
2
3
4
5
kubectl --context kind-argocd-hub \
  --namespace argocd \
  patch configmap argocd-cmd-params-cm \
  --type merge \
  --patch '{"data":{"applicationsetcontroller.enable.progressive.syncs":"true"}}'

Restart the ApplicationSet controller so it reads the setting:

1
2
3
4
5
6
7
kubectl --context kind-argocd-hub \
  --namespace argocd \
  rollout restart deployment/argocd-applicationset-controller

kubectl --context kind-argocd-hub \
  --namespace argocd \
  rollout status deployment/argocd-applicationset-controller

Delete the standard Matrix example:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  delete applicationset matrix-web-demo

Lab note: This delete-and-recreate step is safe for the disposable Kind lab in this guide. Do not use the same approach for a live production ApplicationSet without first reviewing its deletion policy and testing how the generated Applications and workloads will be handled.

Create applicationsets/05-progressive-syncs.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: progressive-web-demo
  namespace: argocd
spec:
  goTemplate: true
  goTemplateOptions:
    - missingkey=error
  generators:
    - matrix:
        generators:
          - git:
              repoURL: https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
              revision: main
              files:
                - path: environments/*/config.yaml
          - clusters:
              selector:
                matchLabels:
                  argocd.argoproj.io/secret-type: cluster
                  environment: '{{.environment}}'
  strategy:
    type: RollingSync
    deletionOrder: Reverse
    rollingSync:
      steps:
        - matchExpressions:
            - key: environment
              operator: In
              values:
                - development
          maxUpdate: 100%
        - matchExpressions:
            - key: environment
              operator: In
              values:
                - production
          maxUpdate: 0
  template:
    metadata:
      name: 'progressive-web-demo-{{.environment}}'
      labels:
        environment: '{{.environment}}'
    spec:
      project: applicationset-lab
      source:
        repoURL: https://github.com/YOUR_GITHUB_USERNAME/argocd-applicationset-lab.git
        targetRevision: main
        path: 'apps/web-demo/overlays/{{.environment}}'
      destination:
        server: '{{.server}}'
        namespace: '{{.namespace}}'

Notice that the generated Application template does not contain automated sync. RollingSync deliberately controls the sync operations itself.

Apply it:

1
2
kubectl --context kind-argocd-hub \
  apply --filename applicationsets/05-progressive-syncs.yaml

Watch both Applications:

1
argocd app list | grep progressive-web-demo

The strategy means:

  1. All Applications labelled environment=development may update.
  2. The controller waits until the development group becomes healthy.
  3. Production has maxUpdate: 0, so it requires manual synchronization.

Approve production after verifying development:

1
argocd app sync progressive-web-demo-production

Then wait for it to become healthy:

1
2
3
4
argocd app wait progressive-web-demo-production \
  --health \
  --sync \
  --timeout 180

Progressive Syncs coordinate the order of Argo CD Applications. They are not a replacement for fine-grained traffic shifting, metric analysis, or automated rollback inside one workload. For those capabilities, use Argo Rollouts Canary Deployment - The Complete Production Guide.

What Happens During Reconciliation?

The complete control loop now looks like this:

  1. The ApplicationSet controller reads the environment files from Git.
  2. It finds registered cluster Secrets whose labels match each environment.
  3. The Matrix generator combines the Git and cluster parameters.
  4. The Go template renders one Argo CD Application per match.
  5. The ApplicationSet controller creates or updates those Application resources.
  6. The Argo CD application controller compares Git with each destination cluster.
  7. The application controller synchronizes the Kustomize resources.
  8. Kubernetes creates or updates the Deployment and Service.
  9. Argo CD continuously detects drift between Git and the live clusters.

If an environment file is removed, a cluster label changes, or a cluster is removed, the generated set can also shrink. This is why deletion behavior must be reviewed carefully before a production rollout.

Troubleshooting

No Applications Are Generated

Run npm install, then restart the dev server.

Inspect the ApplicationSet:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  describe applicationset matrix-web-demo

Read the controller logs:

1
2
3
4
kubectl --context kind-argocd-hub \
  --namespace argocd \
  logs deployment/argocd-applicationset-controller \
  --tail=200

Check:

  • The Git repository URL is correct.
  • The revision exists.
  • environments/*/config.yaml matches real files.
  • The registered cluster Secret has the required environment label.
  • The Git environment value exactly matches the label value.
  • The parameter-producing generator appears before the consuming generator.
map has no entry for key

This is missingkey=error doing its job. A template references a parameter that the generator did not produce.

Compare the spelling and capitalization in the configuration file and template. For example, .clusterName and .clustername are different.

Cluster Connection Shows Unknown or Failed

Run:

1
2
3
argocd cluster list
argocd cluster get development
argocd cluster get production

For this local lab, confirm that the stored servers are:

1
2
https://development-control-plane:6443
https://production-control-plane:6443

If they still use 127.0.0.1, repeat the Secret patches.

x509: certificate is valid for ..

The Kubernetes API certificate does not contain the internal control-plane hostname. Recreate the affected kind cluster with the matching certSANs configuration from Step 1, then register it again.

Do not solve a production certificate problem by permanently disabling TLS verification.

AppProject Rejects the Application

Inspect the Application conditions:

1
argocd app get matrix-web-demo-development

Common messages include:

  • Repository is not permitted
  • Destination cluster is not permitted
  • Destination namespace is not permitted
  • Resource kind is not permitted

Compare the rendered Application with projects/platform-project.yaml.

Kustomize Path Does Not Exist

Render the exact path locally:

1
kubectl kustomize apps/web-demo/overlays/development

Also confirm that the file was committed and pushed. A correct local file that is absent from the remote repository is still invisible to Argo CD.

Two Applications Fight Over the Same Resources

This usually happens when two tutorial ApplicationSets are active simultaneously. List them:

1
2
3
kubectl --context kind-argocd-hub \
  --namespace argocd \
  get applicationsets

Keep only the example you are currently testing.

Progressive Syncs Do Not Start

Confirm the feature flag:

1
2
3
4
kubectl --context kind-argocd-hub \
  --namespace argocd \
  get configmap argocd-cmd-params-cm \
  --output jsonpath='{.data.applicationsetcontroller\.enable\.progressive\.syncs}{"\n"}'

It should print true.

Check the controller logs and verify that generated Applications contain the labels referenced by each matchExpressions step.

If a previous group is not Healthy, RollingSync will not move forward. Inspect that Application rather than repeatedly restarting the controller.

Production Remains OutOfSync

In our Progressive Sync example, this is expected because production uses:

1
maxUpdate: 0

Approve it manually:

1
argocd app sync progressive-web-demo-production

Cleanup

Delete the active ApplicationSet first:

1
2
3
4
kubectl --context kind-argocd-hub \
  --namespace argocd \
  delete applicationset progressive-web-demo \
  --ignore-not-found

If you stopped before the Progressive Sync section, remove any other tutorial ApplicationSets:

1
2
3
4
5
6
7
8
kubectl --context kind-argocd-hub \
  --namespace argocd \
  delete applicationset \
  list-web-demo \
  cluster-web-demo \
  git-web-demo \
  matrix-web-demo \
  --ignore-not-found

Remove the project:

1
2
3
4
kubectl --context kind-argocd-hub \
  --namespace argocd \
  delete appproject applicationset-lab \
  --ignore-not-found

Remove both registered clusters while Argo CD is still available:

1
2
argocd cluster rm development
argocd cluster rm production

Delete the three local Kubernetes clusters:

1
2
3
kind delete cluster --name development
kind delete cluster --name production
kind delete cluster --name argocd-hub

Stop any remaining port-forward command with Ctrl+C.

Deleting the local Git repository is optional. Keep it if you want to extend the lab with staging, additional applications, or a cloud cluster.

Final Thoughts

Argo CD ApplicationSet becomes valuable when GitOps moves beyond a handful of manually maintained Applications. It gives platform teams a repeatable way to transform cluster registrations, repository structure, and environment configuration into consistent Argo CD Applications.

You now have a working multi-cluster GitOps lab in which one ApplicationSet can discover configuration, match the correct clusters, create Applications, and coordinate their deployment order—all while the application manifests remain clean and reusable in Git.

Happy Coding
